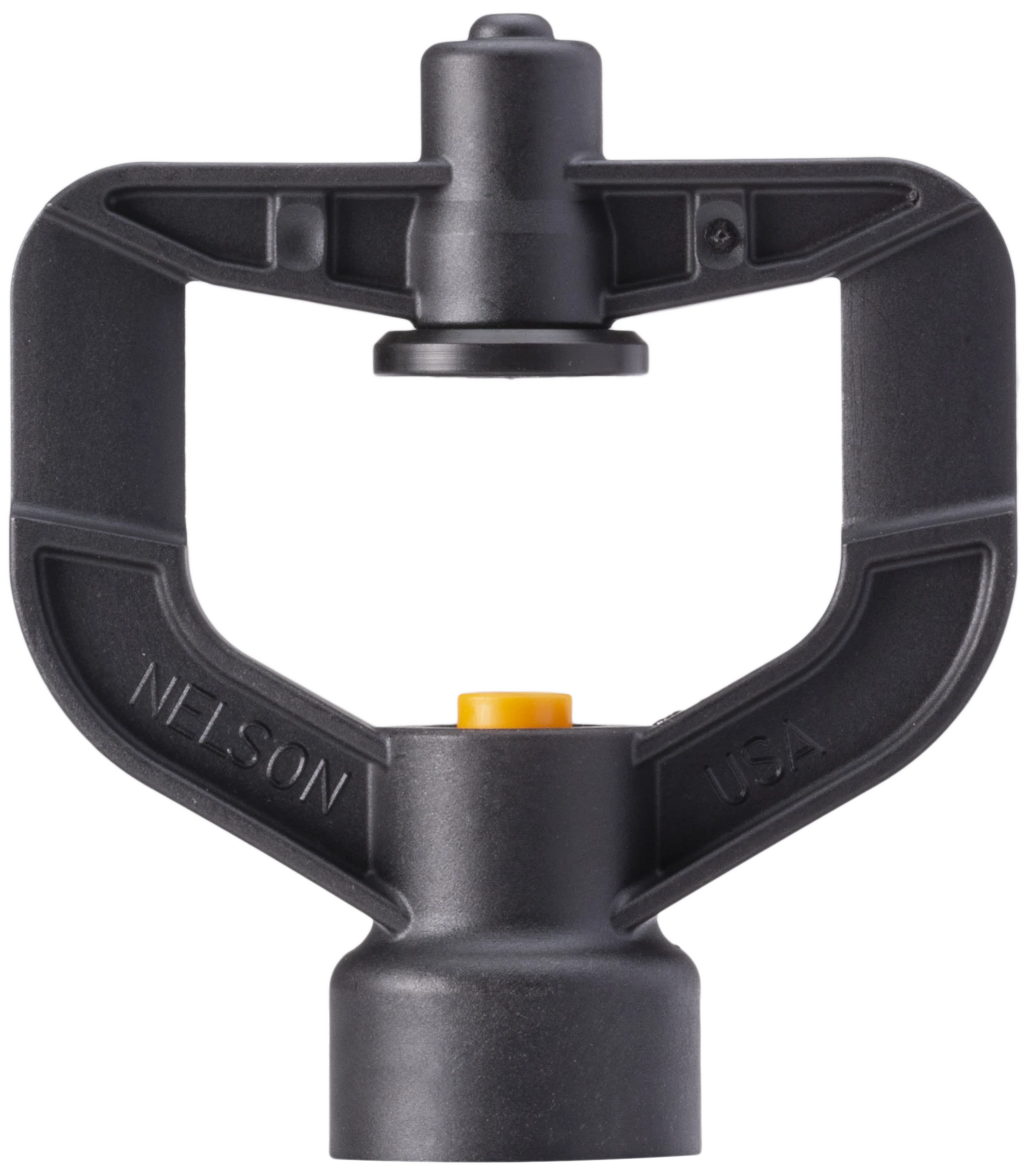

D10 Spray

The D10 Spray is great for irrigation of delicate plant material, misting, and short radius applications in a nursery setting.

View Photo Gallery
Spinners & Sprays

D10 Spray

D10 Spray
Performance

Flow: 0.54-5 gpm (128-1144 lph)

Pressure: 20-50 psi (1.5-3.5 bar)

Radius: 6-14 ft (1.8-4.3 m)

Nozzle Size: #8.3-20 2TN

Features

The D10 Spray provides a flat continuous spray and can be mounted upright or inverted. It is available with the same adapters, nozzles, and accessories as the S10 spinner.

  • Tough, durable, and reliable build.
  • High uniformity.
  • Easy-clean, color-coded nozzles.
  • PVC or threaded adapter options.
  • Mini Regulator Drain Check option.
  • FT4 or FT5 feedtube options for easy connection to polyethylene pipe.
Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
