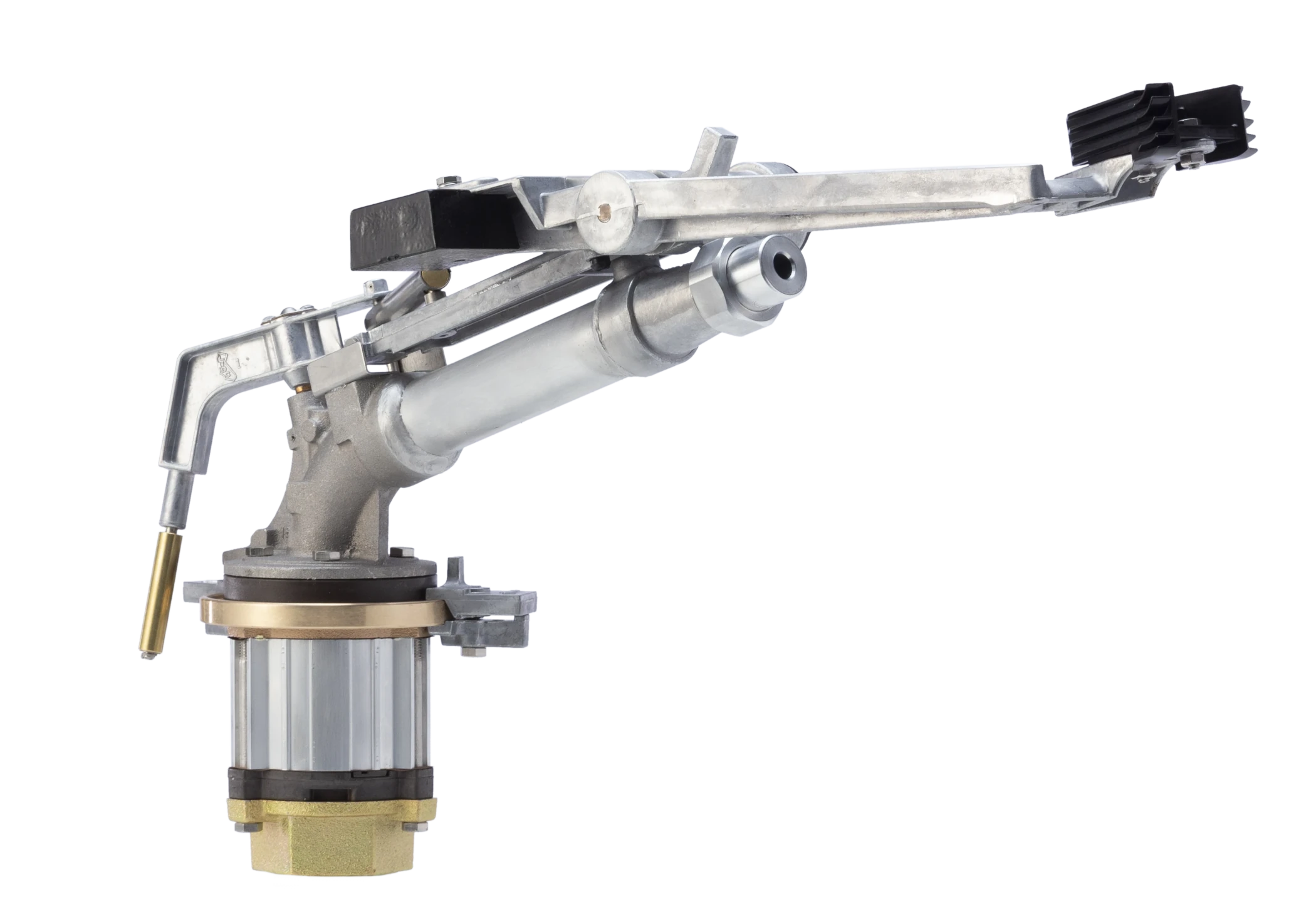

75 Series Big Gun® Sprinkler From Nelson Irrigation

Performance

Flow: 25-160 gpm (6-36 m³/hr)

Pressure: 25-80 psi (1.75-5.5 bar)

Radius: 75-140 ft (23-43 m)

Trajectory: 18°, 21°, 24°, 43°

Features

The Nelson 75 Series Big Gun^® Sprinkler is available as a Full or Part Circle sprinkler in a variety of trajectories and connections. The interchangeable Taper Ring Nozzle makes customizing the flow rate a breeze. While it may be the smallest member of the Big Gun^® sprinkler family, it uses the same heavy duty lower bearing and rugged construction of the larger sprinklers. It can also be paired with the QC100 for a portable, quick-coupling system.

Models

Full Circle F75

Full-circle operation, ideal for solid set systems with limited available flow or pressure.

View Product

Part Circle SR75

Part-circle operation for use as a pivot end gun or in solid set edge applications where pressure and/or flow is limited.

View Product

Resources

Brochures

PDF

Big Gun^® Brochure

Copied!

Videos

Nelson Big Gun Sprinkler Automation

Copied!

Drawings & Dimensions

DWG

SR75 24 X 2" ANSI DIN EURO

Performance & Specifications

PDF

Big Gun^® Industrial Performance (43 degree)

Operation & Maintenance

PDF

F75 Operation & Maintenance

Copied!

PDF

SR75 Operation & Maintenance

Copied!

PDF

SR75 Drive Vane Selection

Copied!

Parts & Service Kits

PDF

11090 Drive Arm Kit for SR75

Copied!

PDF

11464 Drive Arm Kit for F75

Technical

Big Gun Flanges & Connections

Copied!

Related Products

Recommended For

End of Pivot Linear Irrigation Automated Big Gun^® Sprinklers Feedlot Dust Suppression & Cooling Log Yard Wet Storage Sports Field Solid Set Irrigation Dust Suppression Arena Corn Hay & Forage Sugarcane Wheat

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
