Pivot Sprinklers

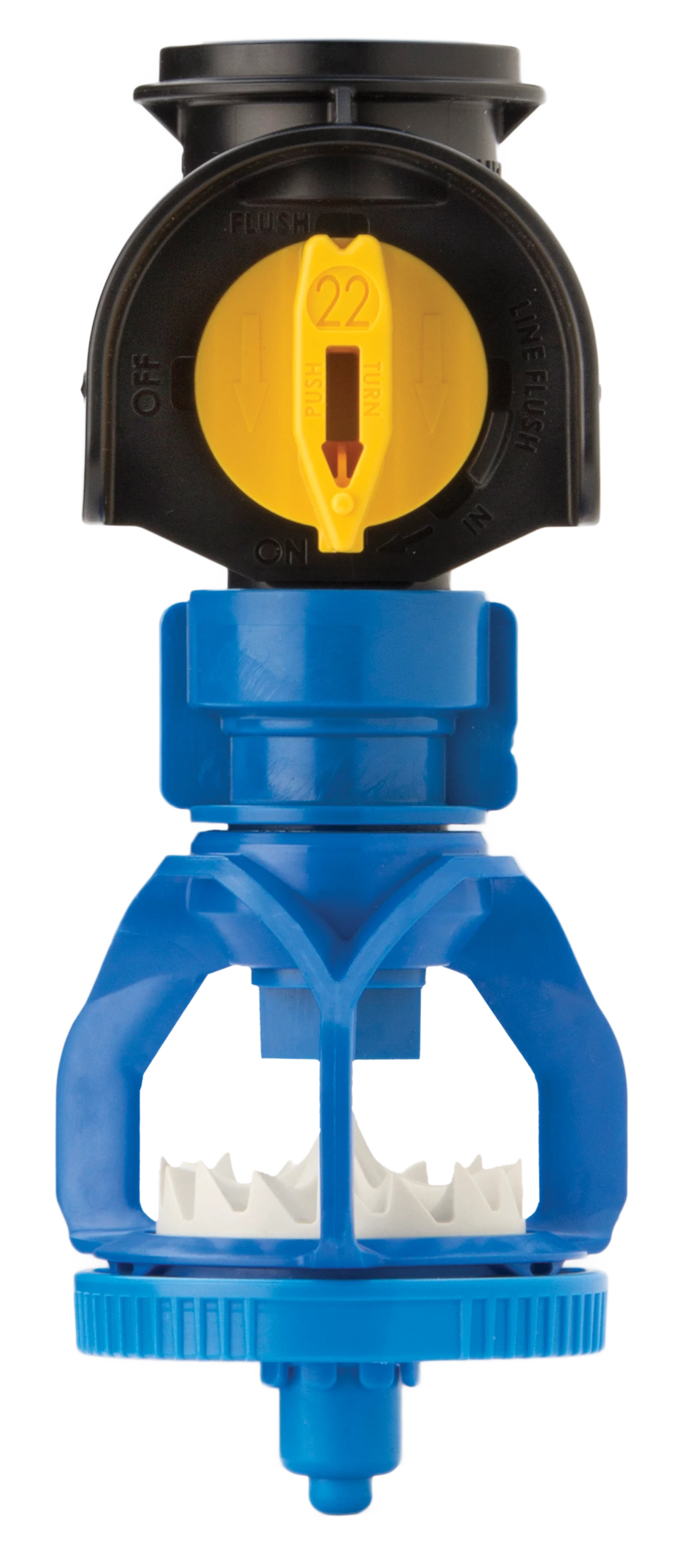

Part-Circle Sprinklers

Nelson part-circle sprinklers direct the water off of the pivot structure at the towers and away from the wheel track to prevent deep wheel track ruts. Overall field uniformity can be maintained by preventing excessive slippage of the tires, and maintaining a uniform speed of travel.

View Photo Gallery
Pivot Sprinklers

Part-Circle Sprinklers

Part-Circle Sprinklers
Features

Part-circle sprinklers are best used for dry wheel track solutions, hose boom applications, or a simple end of system addition. Choose from the PC-Rotator®, PC-Spinner, and PC-Sprayhead. All sprinklers are available in both 3000 Series (with 3TN nozzle) and 3030 series (with 3NV nozzle). The 3030 series utilizes the universal adapter (U3030).

Mount only on a straight rigid drop or a hose boom such as “boombacks” from IACO.

The Part-Circle Rotator® with rotating streams provides the widest throw available and better overlap when used with other Rotator® Sprinklers.

The Part-Circle Spinner provides gentle, rain-like droplets with high uniformity. It pairs well other Spinner and Orbitor packages.

The Part-Circle Sprayhead is an economical part-circle option for Sprayhead systems. The Part-Circle spray plate provides stream definition similar to the spray plate geometry of the #9493 Blue spray plate. The medium grooves and concave trajectory provide wind-penetration and wide throw distance.

Models
Part-Circle Rotator®

Part-Circle Rotator®

The Part Circle Rotator® with rotating streams provides the widest throw available and better overlap.

Part-Circle Spinner

Part-Circle Spinner

Use the Part-Circle Spinner with Spinner or Orbitor packages to help keep wheel tracks dry.

Part-Circle Sprayhead

Part-Circle Sprayhead

Use the Part-Circle Sprayhead with a D3000 or D3030 Sprayhead package to help keep wheel tracks dry.

Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
