Pivot Sprinklers

Rotator®

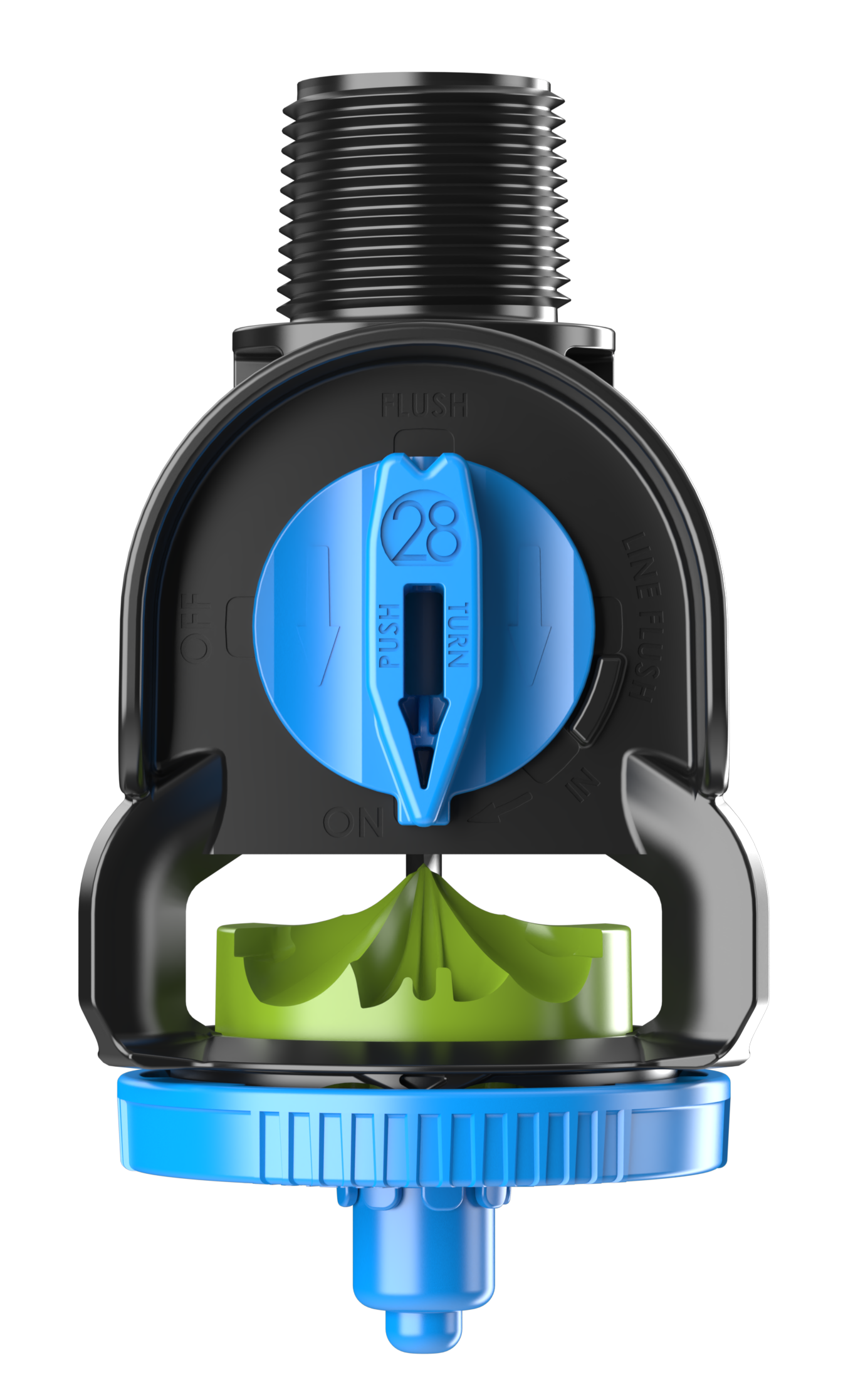

The Pivot Rotator® is the world’s premier pivot sprinkler, featuring the widest throw on drops and highest uniformity.

View Photo Gallery
Pivot Sprinklers

Rotator®

Rotator®
Performance

Pressure: 10-50 psi (0.7-3.4 bar)

Diameter: 50-74 ft (15.2-22.6 m)

Nozzle Size: #12-50

Features

Greater Throw Radius

As rotating-type sprinklers the R3000 and R3030 produce a wider pattern resulting in a lower application rate, reduced runoff and longer soak time.

Higher Uniformity

The Rotator greatly improves uniformity because of the increased overlap from adjacent sprinklers.

Reduced Wind Drift and Evaporative Loss

The Rotator more than meets the challenge of putting a rotating type sprinkler on drop tubes — down out of the wind — to minimize wind drift and evaporative loss.

Press, Spin, Click

At the heart of the 3030 Series is the new 3NV Nozzle. This innovative dial-nozzle combines multiple functions - nozzle flush, line flush, shutoff - all without removing the nozzle.

  • Prevent Overwatering: Use the integrated shutoff to selectively turn off sprinklers, especially in the first span. Eliminates the need for a ball valve on every sprinkler.
  • Superior Flushing: a quick and simple turn of the nozzle is all it takes to clean plugged sprinklers.
  • Save Labor: 3NV systems are easier to install and maintain.
  • Integrated: The modular design works with existing 3000 Series cap, plate, fittings, and regulators. You simply need a new nozzle and body to get the full benefits of the 3030 Series.
Models
R3030 Sprinkler with Multi-function 3NV Nozzle

R3030 Sprinkler with Multi-function 3NV Nozzle

Nozzle flush, line flush, and shutoff - all without removing the nozzle.

R3000 Sprinkler with 3TN Nozzle

R3000 Sprinkler with 3TN Nozzle

Classic precision nozzle design

Plates
Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
