R75 End of Pivot Sprinklers

This versatile, high-uniformity sprinkler is based on field-proven Rotator® Technology. The R75 and R75LP (low pressure option) help fill in the corners and gain added ground - up to 70 feet (21 m).

View Photo Gallery
End of Pivot Products

R75 End of Pivot Sprinklers

R75 End of Pivot Sprinklers
Performance

Flow: 24-70 gpm (5.4-15.4 m3/hr)

Pressure: 25-60 psi (1.75-4 bar)

Radius: 50-70 ft (14.9-21 m)

Features

The R75's unique dual barrel spray plate provides both distance & uniformity. Adjustable stops achieve best arc of coverage for running a single sprinkler, dual R75, or as a secondary with a Big Gun® Sprinkler. The spray plate is easily removable to gain access to the nozzle should you need to change or unplug the sprinkler. Available with 1 1/4" MNPT or MBSP connections.

Models

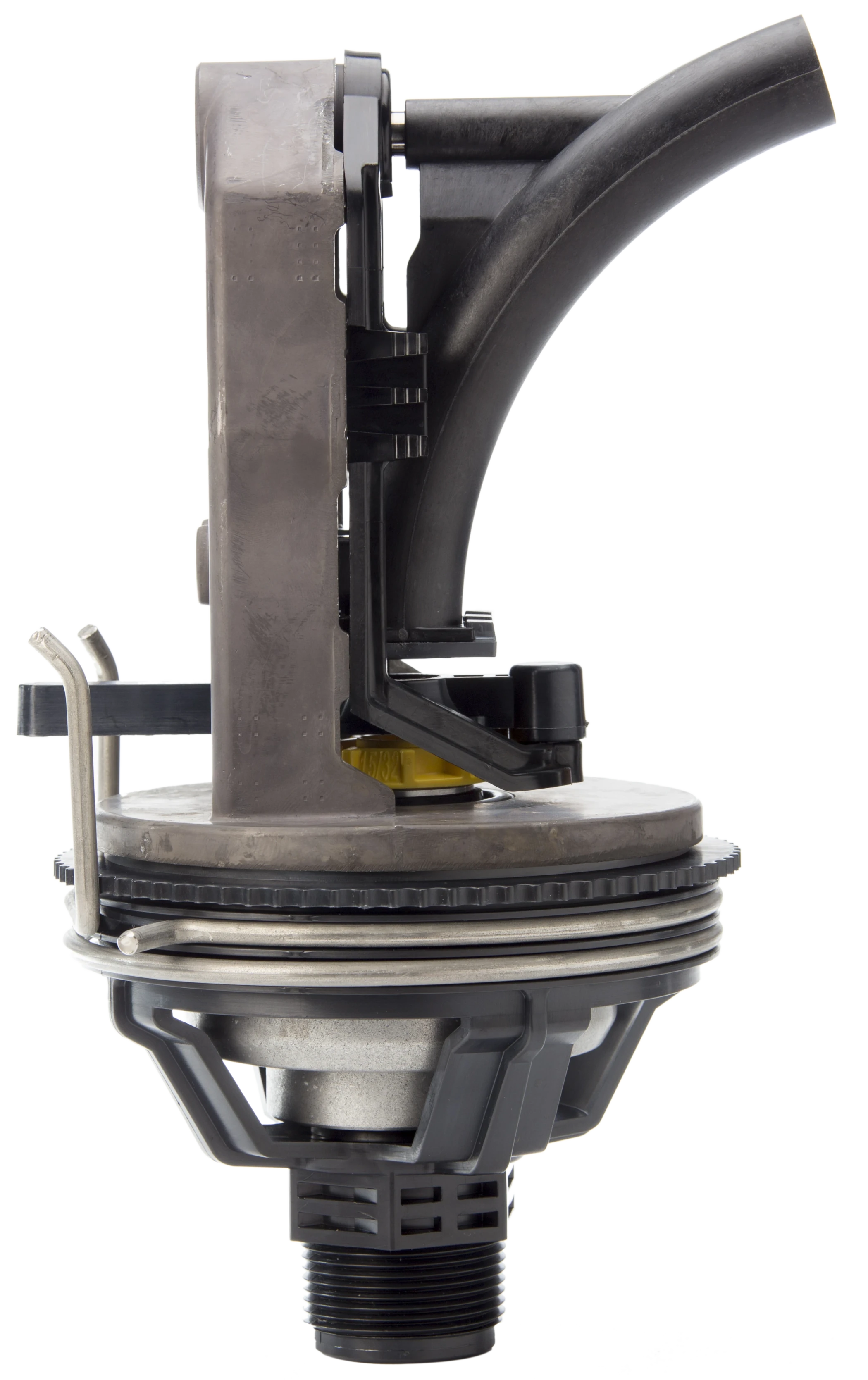

R75

R75

The standard R75 operating from 40-60 psi (2.8-4.0 bar).

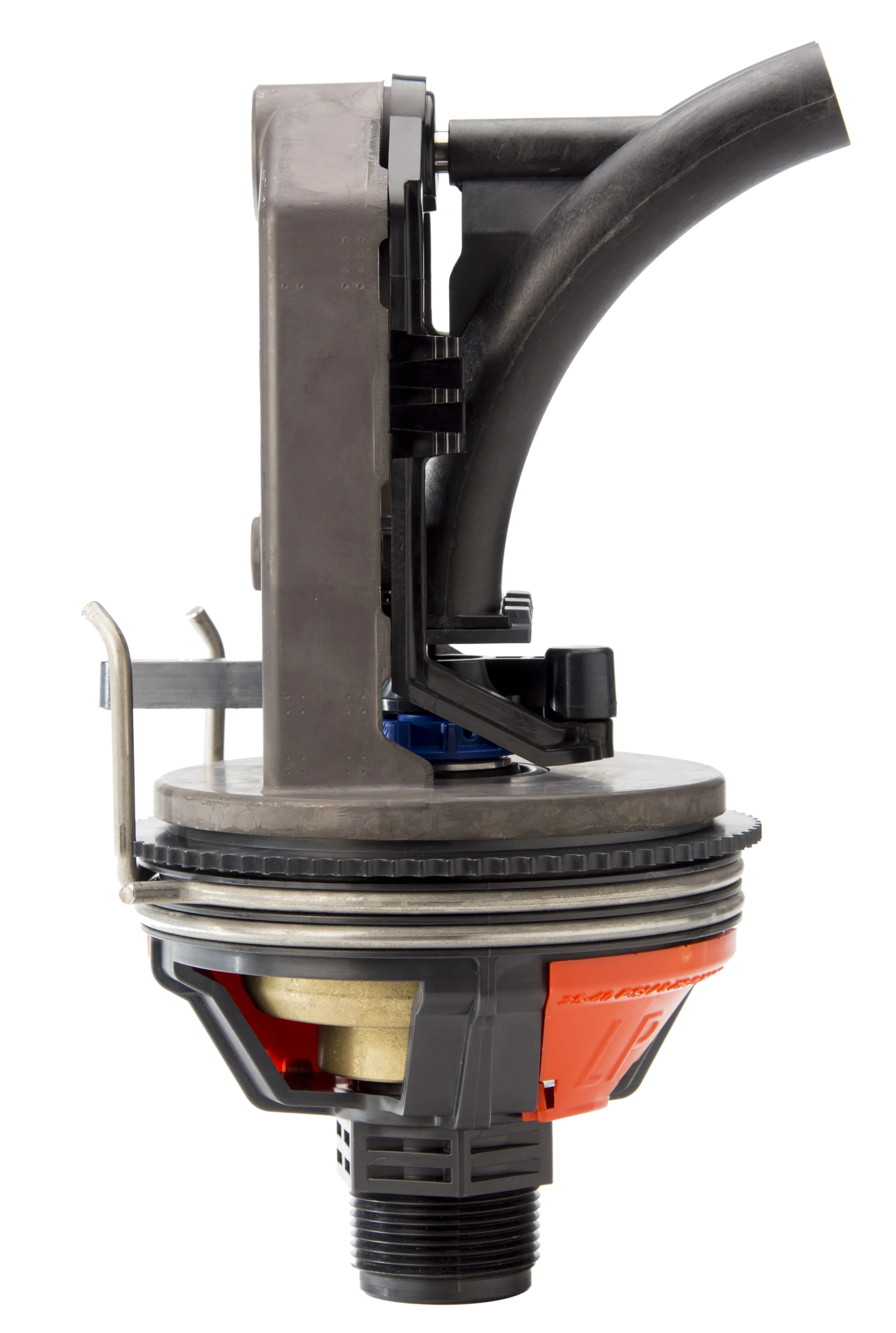

R75LP

R75LP

A low pressure version of the R75 operating from 25-40 psi (1.7-2.8 bar).

Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
