Impact Sprinklers

Part-Circle Impact Sprinklers

1" and 1 1/4" brass impact sprinklers for solid set and end-of-pivot applications.

View Photo Gallery
Impact Sprinklers

Part-Circle Impact Sprinklers

Part-Circle Impact Sprinklers
Features

The impact sprinkler was a big part of what got us started. As Rotator® technology developed we replaced many of our impact sprinklers with new products. However these large 1" and 1 1/4" brass sprinklers are still running strong.

The sturdy drive arm of a Nelson brass sprinkler accompanied by the large impact surface allows for a consistent drive mechanism across a wide range of pressures and flow rates. The stainless steel arm and spring pin withstand even dirty water conditions, while its heavy-duty bearing contributes to a long life that cheap imports cannot replicate.

P65 sprinklers use a 7RN nozzle, and optional 7V vane to increase throw distance.

P85 sprinklers use a 8DRN nozzle, and optional 8V vane. The 8ADN (adjustable diffuser nozzle) is also available to customize the water application characteristics. They are available in low-angle models (designated by "A" in the model name) for end of pivot applications, as well as standard 24 trajectory for solid set applications. Single or dual nozzles models are also available.

Models
P65M 1 Part-Circle Impact

P65M 1" Part-Circle Impact

24° trajectory, 1" NPT or BSP, for solid set applications.

Flow: 7-34 gpm (1.7-7.7 m3/hr)

Pressure: 30-80 psi (2-5.5 bar)

Radius: 50-80 ft (15-25 m)

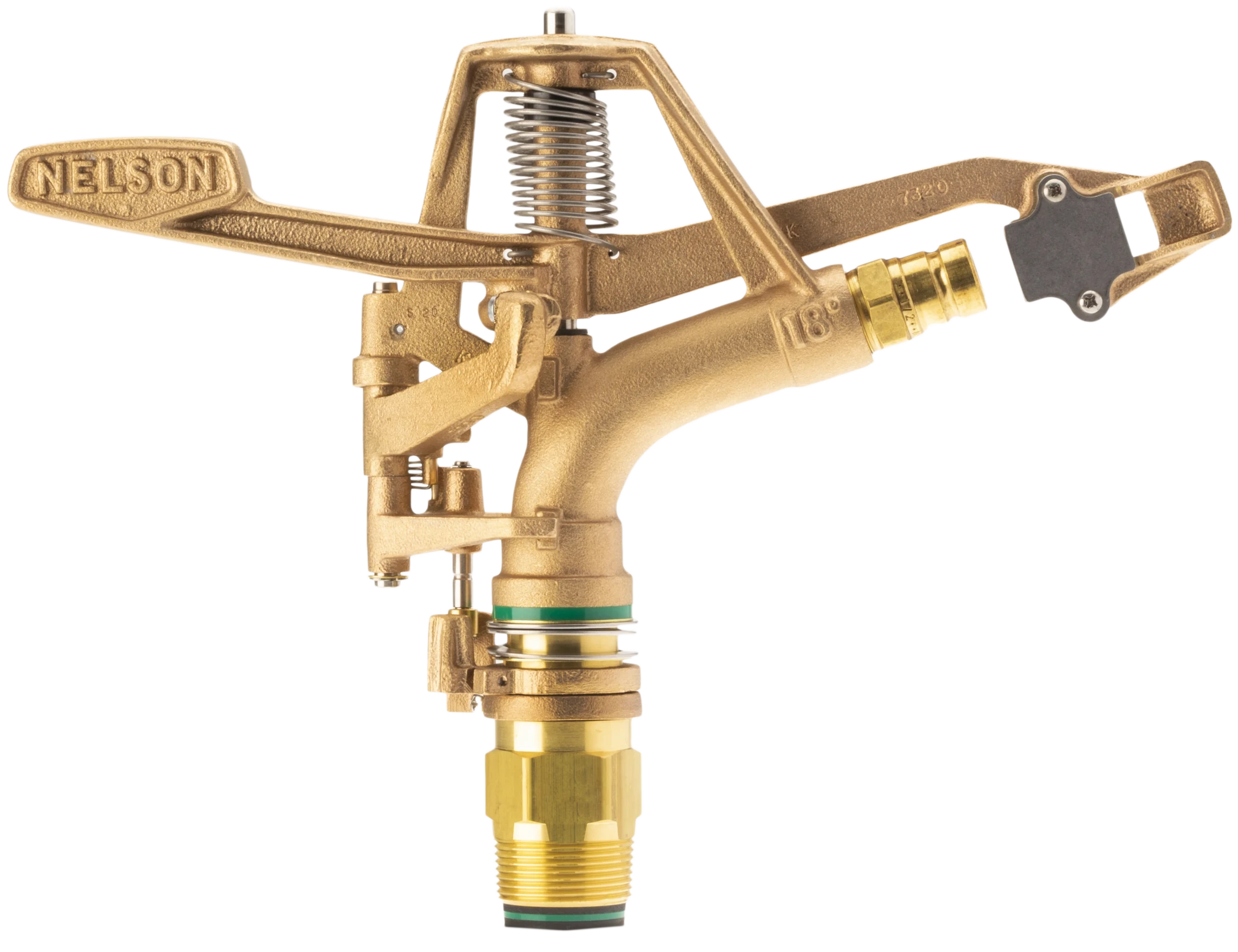

P85AS 1 1/4 Part-Circle Impact

P85AS 1 1/4" Part-Circle Impact

18° trajectory, single nozzle, 1.25" NPT or BSP, for end-of-pivot applications.

Flow: 15-133 gpm (3-30 m3/hr)

Pressure: 20-100 psi (1.5-7 bar)

Radius: 50-100 ft (15-30 m)

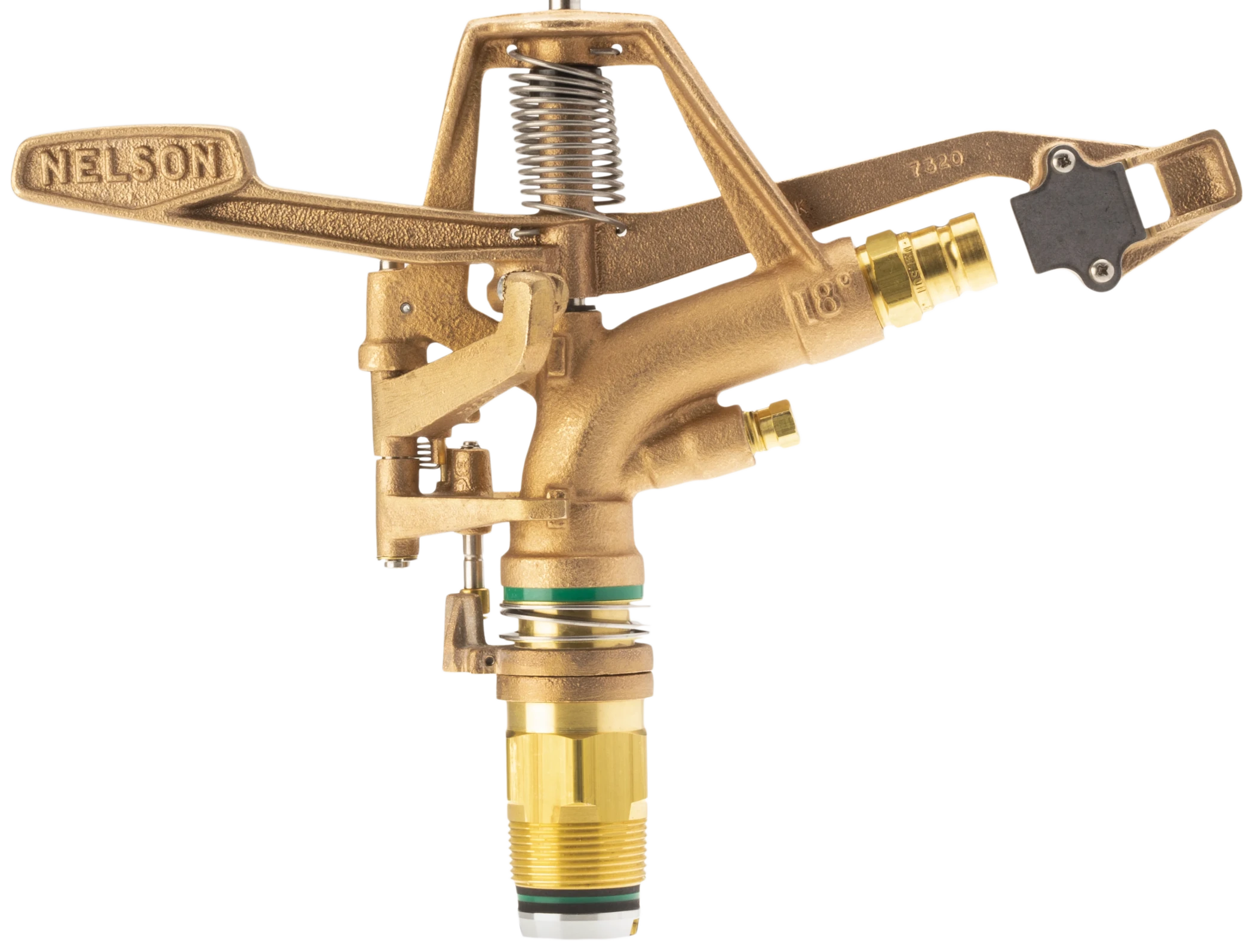

P85A 1 1/4 Part-Circle Impact

P85A 1 1/4" Part-Circle Impact

Same as P85AS, except with optional secondary nozzle to improve uniformity.

 P85 1 1/4 Part-Circle Impact

P85 1 1/4" Part-Circle Impact

24° trajectory, optional secondary nozzle, 1.25" NPT or BSP, for solid set applications.

Flow: 20-116 gpm (4.5-26 m3/hr)

Pressure: 40-100 psi (3-7 bar)

Radius: 70-120 ft (21-36 m)

Resources
Related Products
Recommended For

Please read our Warranty information.

Sprinkler performance data have been obtained under ideal test conditions and may be adversely affected by wind, poor hydraulic entrance conditions, or other factors. Published radius and diameter of throw performance are at nozzle pressure when tested at 1,250 feet above sea level. Your results may differ from the test data results obtained by Nelson Irrigation Corporation and Nelson Irrigation Corporation makes no representation regarding droplet conditions, uniformity, application rate, or fitness for a particular purpose.
